SKU# AF635

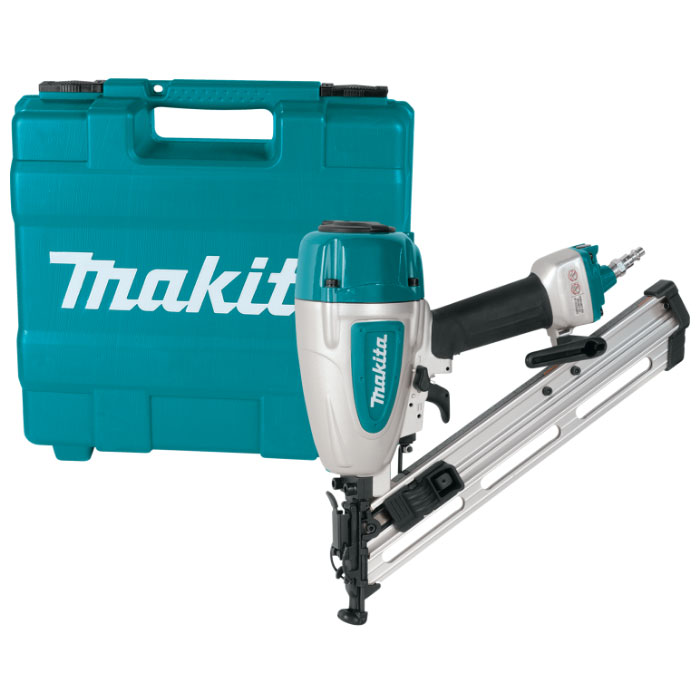

Makita 15ga. 2 1/2" Angled Finish Nailer
Makita 15ga. 2 1/2" Angled Finish NailerProduct Overview
The Makita 15 Gauge Angled Finish Nailer (model AF635) offers an array of features and powerful performance in a compact size. The AF635 has a rear-loading magazine that accepts standard DA style (34⁰), 15 ga. angled finish nails sized 1-1/4" to 2-1/2". The nail lock-out and large windows alert the user when to reload nails as the contact arm and trigger are used together for controlled firing. With a compact size and weighing in at only 4 lbs., the AF635 was engineered for all-day professional use. Additional convenience features include a reversible belt hook that allows the tool to remain close-by, a multi-directional exhaust port that directs exhaust air away from the user, a built-in air duster that provides convenient air flow to clear your workspace, and a 2-mode selector switch offering quick control over nailing operation.
Key Features
- Powerful motor drives 15 gauge "DA" style angled finish nails from 1-1/4" to 2-1/2"
- Magnesium body, aluminum magazine and cylinder deliver strength and durability
- Tool-less depth adjustment for more precise flush and countersink nailing
- Nail lock-out mechanism protects tool and work surface from dry-fires
- Built-in air duster provides convenient air flow to clear work surface
- Efficient motor design offers leading power performance
- Tool-less easy to clear nose for fast and easy nail extraction
- 2-mode selector switch for control over nailing operation
- Multi-directional exhaust port directs exhaust air away from operator
- Includes two removable no-mar tips; convenient on tool storage
- Reversible belt hook allows the tool to remain close
- Housing bumpers protect tool and work surface
- Integrated rubber soft grip for operator comfort
- Rear lock-and-load magazine holds up to 100 nails for maximum efficiency
- Narrow nose design allows easy nailing access in confined areas
- Ideal for trim work, baseboard and crown molding installation, hanging doors, exterior fascia and soffits, and other woodworking applications
- Minimum recommended air delivery of 3.1 SCFM @ 90PSI
- 3-year limited warranty
Product Specifications
| Air Consumption |
3.1 SCFM |
| Air Fitting Included |
Yes |
| Brand |
Makita |
| Fastening category |
Finish |
| Industrial Style Fitting Included |
1/4" NPT x 1/4" |
| Inlet Size |
1/4" NPT |
| Item Height |
12-1/8 in |
| Item Length |
13-3/8 in |
| Item Width |
3-15/16 in |
| Maximum Magazine Capacity |
100 |
| Model # |
AF635 |
| Nail Size |
1-1/4" to 2-1/2" (15 ga. DA style) |
| Net Weight |
4 lbs |
| Operating Air Pressure |
PSI : 70 - 120 Bar : 4.9 - 8.3 |
| Power Type |
Pneumatic |
| Shipping Weight |
9.7 lbs |
| Tool Hook Included |
Yes |
